Get Started¶

In this tutorial you will deploy a fully functional Apache Airflow cluster on Kubernetes using Juju charms. By the end you will have a running Airflow instance with an API Server UI you can access from your browser.

What you’ll need¶

Ubuntu 24.04 (or later).
A machine with at least a 4-core CPU, 8 GB RAM, and 30 GB of free disk space.
A K8s cluster (v1.32+) with a Juju controller bootstrapped on it.

See Set up your juju deployment for a step-by-step guide.

What you’ll do¶

Deploy the Airflow charms and their database.
Integrate the charms.
Access the Airflow API Server UI.

Deploy the charms¶

This section walks you through deploying and integrating the charms that comprise the Charmed Airflow solution.

Deploy PostgreSQL and PgBouncer Charms¶

Airflow requires a PostgreSQL database to store metadata. Deploy the PostgreSQL and PgBouncer charms (optionally for connection pooling for the PostgreSQL charm) first:

juju deploy postgresql-k8s --trust

Note

PgBouncer charm is optional. The PgBouncer charm is a connection pooler, reducing the number of direct connections to the PostgreSQL charm. It is recommended for production workloads but not required.

juju deploy pgbouncer-k8s --trust

Deploy the Airflow Coordinator charm¶

The Airflow Coordinator is the central configuration hub. It generates and distributes the Airflow configuration.

juju deploy airflow-coordinator-k8s

Deploy the core Airflow components¶

Deploy the four core Airflow workload charms:

juju deploy airflow-api-server-k8s
juju deploy airflow-scheduler-k8s
juju deploy airflow-dag-processor-k8s
juju deploy airflow-triggerer-k8s

Note

This tutorial deploys the latest supported versions of the Airflow Charms. To use other versions, refer to the Charm Store.

These charms map to the Airflow components:

Charm	Purpose
`airflow-api-server-k8s`	Serves the Airflow dashboard UI and API Server.
`airflow-scheduler-k8s`	Schedules and triggers DAG runs.
`airflow-dag-processor-k8s`	Parses DAG files and updates the metadata database.
`airflow-triggerer-k8s`	Handles deferred (asynchronous) tasks.

Integrate the charms¶

Integrate the Airflow Coordinator charm with the database¶

juju integrate airflow-coordinator-k8s:postgres postgresql-k8s:database

Note

If you deployed the PgBouncer charm (recommended):

juju integrate pgbouncer-k8s:database postgresql-k8s:database
juju integrate airflow-coordinator-k8s:postgres pgbouncer-k8s:database

Integrate the API server charm with the Airflow Coordinator charm¶

The API server integrates with the Airflow Coordinator to share its host and port information. This allows the Airflow Coordinator to include these details in the centralized airflow.cfg, which it then distributes across the entire cluster.

juju integrate airflow-coordinator-k8s:airflow-api-server \
  airflow-api-server-k8s:airflow-api-server

Integrate all core charms with the Airflow Coordinator charm¶

Every core charm receives its Airflow configuration from the Airflow Coordinator charm through the airflow-coordinator integration:

juju integrate airflow-coordinator-k8s:airflow-coordinator \
  airflow-api-server-k8s:airflow-coordinator

juju integrate airflow-coordinator-k8s:airflow-coordinator \
  airflow-scheduler-k8s:airflow-coordinator

juju integrate airflow-coordinator-k8s:airflow-coordinator \
  airflow-dag-processor-k8s:airflow-coordinator

juju integrate airflow-coordinator-k8s:airflow-coordinator \
  airflow-triggerer-k8s:airflow-coordinator

Wait for the deployment¶

Monitor the status of deployment with juju status and wait until all applications and units show active/idle. This can take several minutes while the coordinator runs the initial database migration and distributes the configuration.

Access the Airflow UI¶

The Airflow web UI is served by the API server charm on port 8080. There are several ways to reach it depending on your environment.

Using the API Server Unit IP directly.
Through traefik’s External IP or subdomain. Refer to the Traefik integration guide for details.

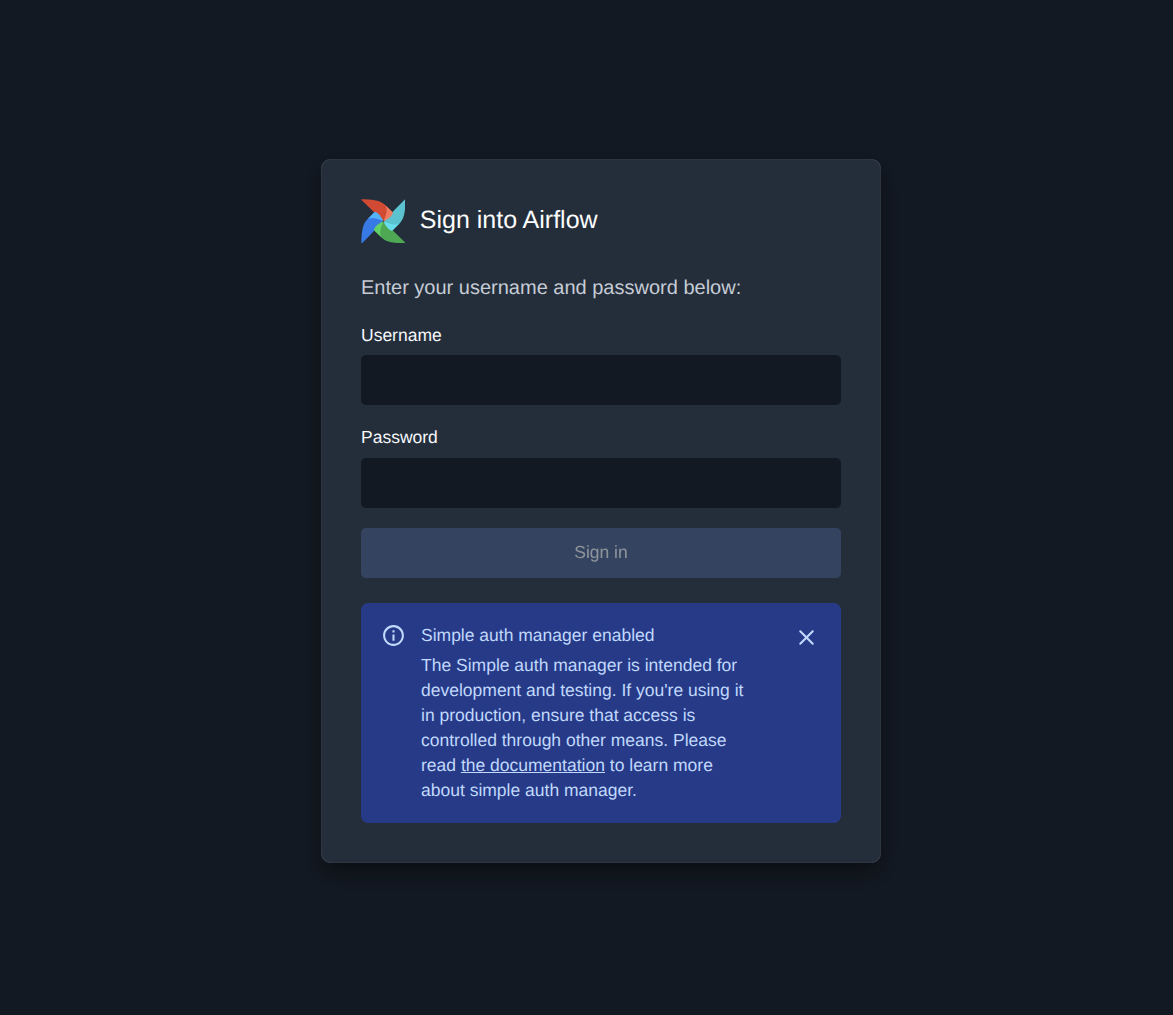

Retrieve the credentials from the API server pod:

kubectl exec -it airflow-api-server-k8s-0 -c airflow-api-server \
  -n airflow -- cat /opt/airflow/simple_auth_manager_passwords.json.generated

Alternatively, search the API server logs:

kubectl logs airflow-api-server-k8s-0 -c airflow-api-server -n airflow | grep -i password

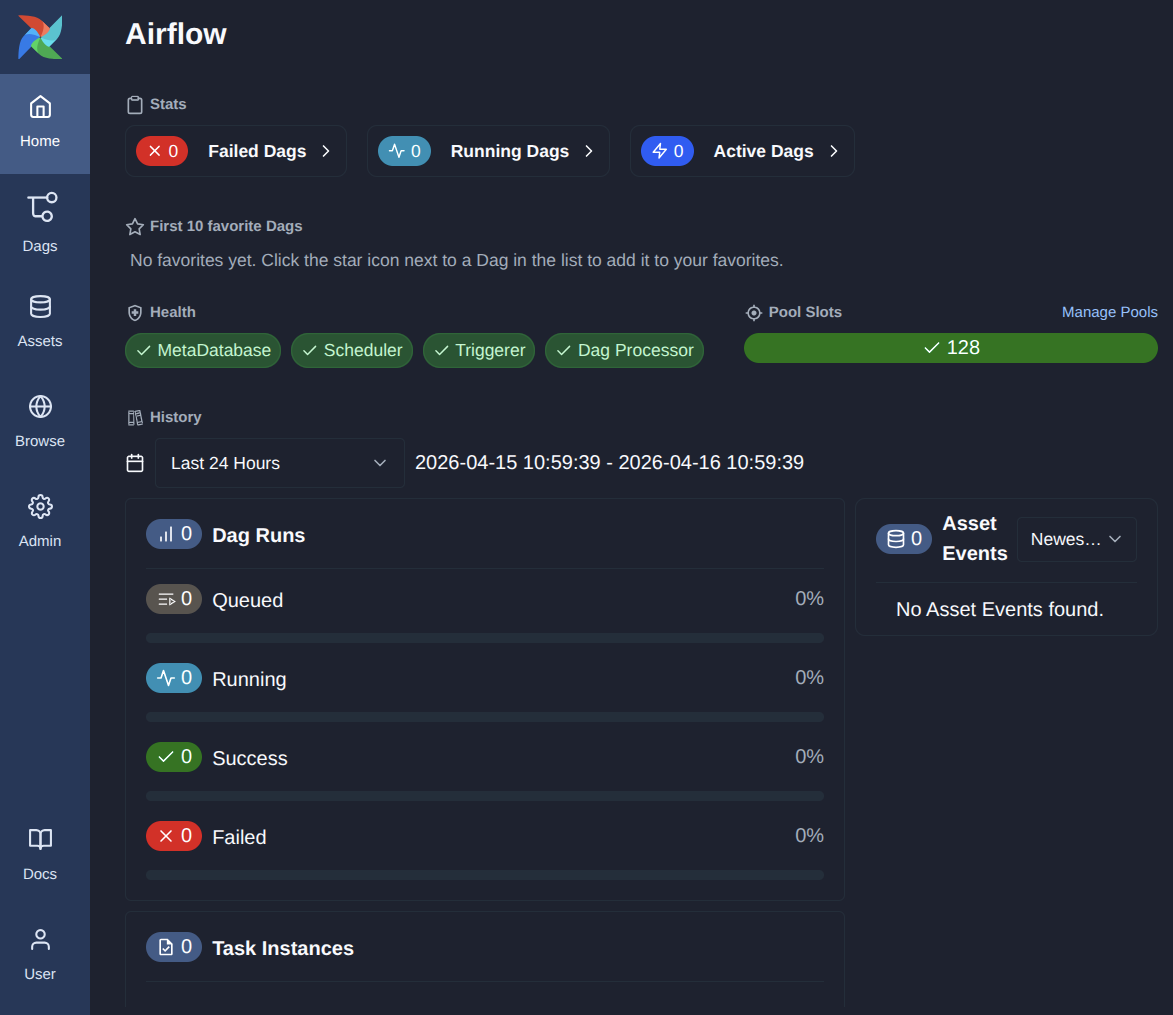

Once done, you are all set to start navigating the dashboard:

Next steps¶

Deploy with Terraform for an automated, reproducible deployment.
Integrate with Traefik for external HTTP/HTTPS access.
Integrate with Git Integrator to sync DAGs from a Git repository.
